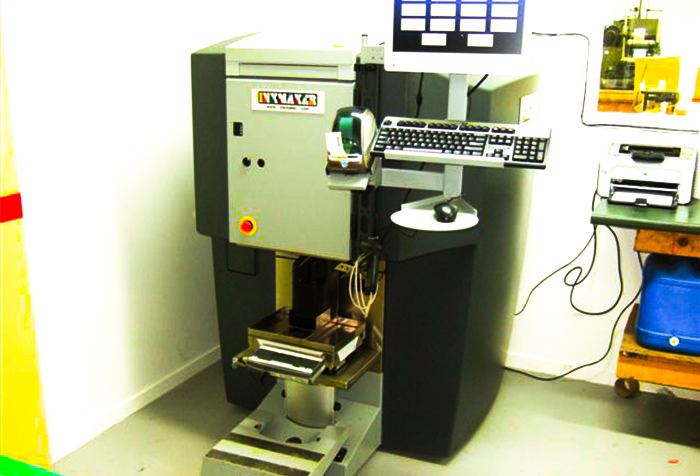

The Inkmaker HA650 is an automatic dispensing system ideal for UV Flexo inks
Fully automatic and easy to operate, it requires minimal input

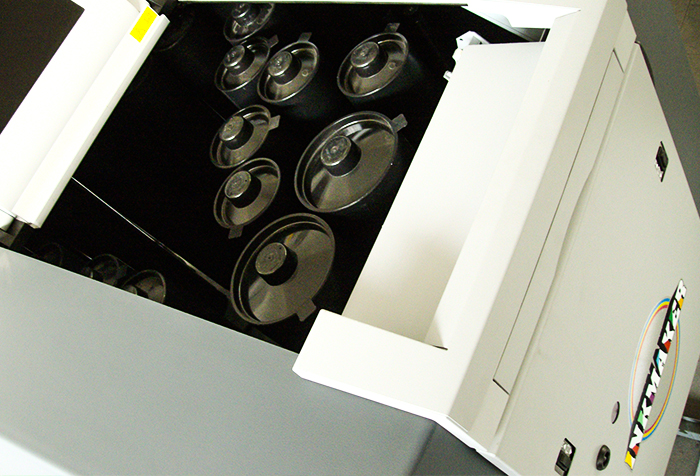

S/S canisters’ configuration: 4 x 20 L, 4 x 10 L, 12 x 6 L c/w built-in S/S agitators
The operator can produce the required formulas in few simple steps and with perfect accuracy

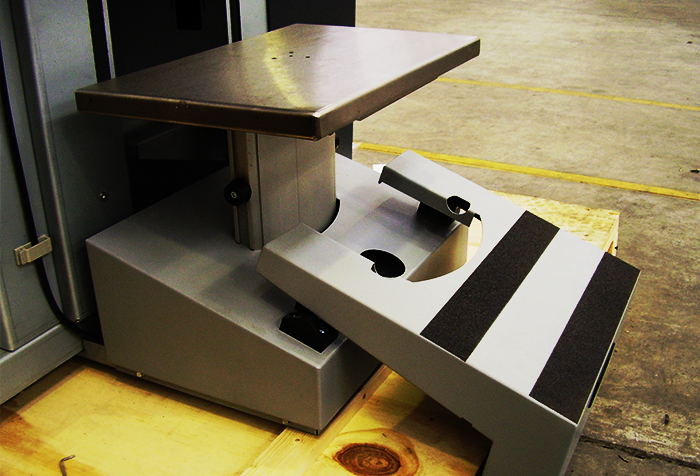

Single dispensing point allows dispensing in containers of any size
Dispensing is fast and accurate through twin nozzle ball valves having 2 & 4.5 mm nozzle openings
Dispensing valves c/w S/S pistons with flow rate of 140 mL per stroke (approximately 1 L/min)
The system is operated though a computer using Inkmaker software
Scale tare is automatically set by the computer
A weight summary sheet is printed for each batch showing the exact batch information
The user can display or print several reports, including: dispensed formulas, job costing, production history, stock availability, etc
Production traceability is simplified with the use of a bar-code system c/w bar-code reader and bar-code label printer
TECHNICAL DATA |
|
---|---|
Components | up to 20 |
Dispensing Acuracy | 1 g (0.1 g upon request) |
Dispensing Time | 4 min for 5 Kg pail |
Built-in storage | 4 x 20 L canisters 4 x 10 L canisters 12 x 6 L canisters All canisters have built-in agitators |
Dimensions (W x H x D) | 1150 x 1830 x 1270 mm |
