You can use our EASYPAINT IN-BATCH solution when the range of colours to produce is broad and the typical order, per coloured batch, ranges between 400 to 2,000L

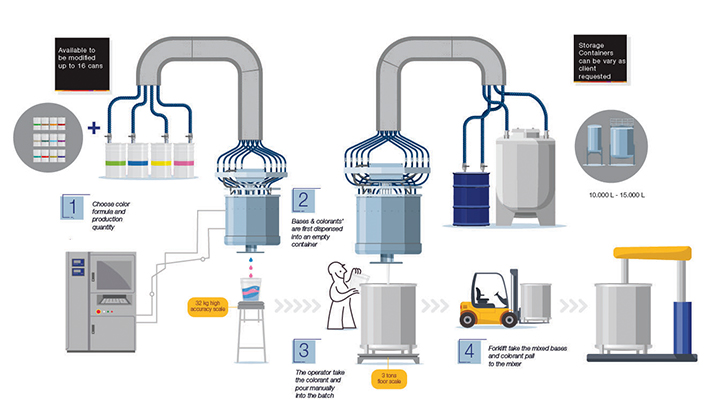

- The operator positions an empty vessel under the dispensing head.
- All components are dosed, one by one, following a pre-determined formulation.
- Our software monitors all operations without the need of human intervention.
- Once the dispensing operations are completed, the operator can remove the vessel.
- The product is now ready to be mixed
DISPENSING, WEIGHING ACCURACY & CYCLE TIMES - Examples
Batch Size | Accuracy | 5 Components |
---|---|---|
150 Kg | 2 g | 12 min |
600 Kg | 5 g | 25 min |
1000 Kg | 5 g | 30 min |
1500 Kg | 5 g | 40 min |
Values represent the average performance of our dispensing valve DN32. All values are influenced by the size and distance of pipes & pumps, inlet pressure & products' viscosity.
